• New

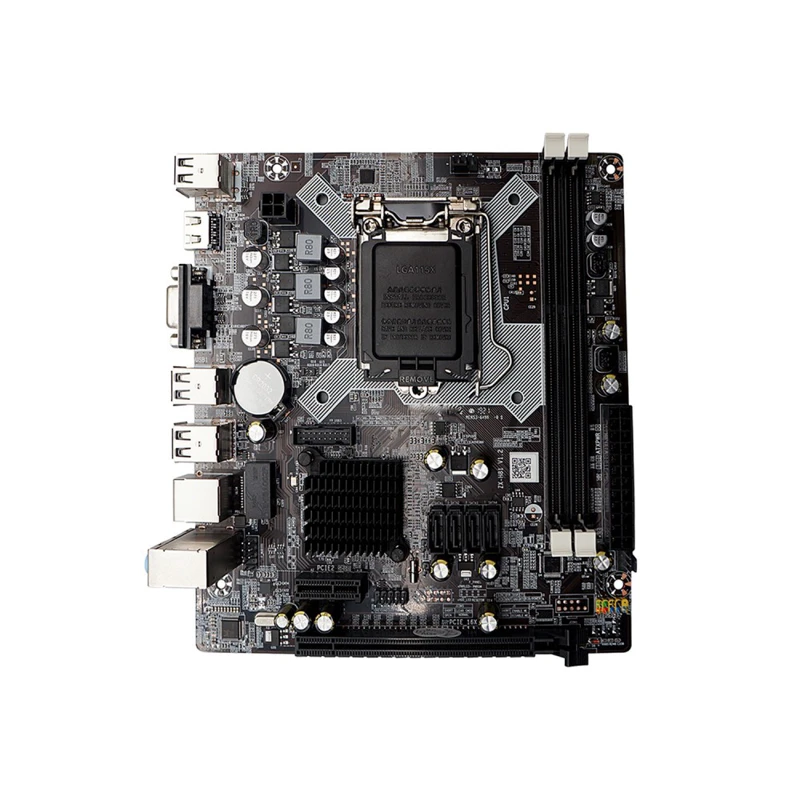

MOTHERBOARD H61
zoom_out_map
MOTHERBOARD H61

MOTHERBOARD H61

MBNNH61
489 TMT
Tax included
Quantity

Supported Processors
All Intel® Core ™ Processor Family LGA1155
Chipset
Intel® H61
Memory subsystem
2 × DIMM DDR3 (non-ECC) unbuffered memory up to 16 GB; Dual channel memory mode
Interfaces for expansion cards
PCI Express 3.0x16 - 1 slot, PCI Express x1 - 1 slot
Drive Interfaces
2 connectors SATA 6 Gbit/s; 2 connectors SATA 3 Gbit/s; 8 ports USB 2.0
Network interface
Network controller (10/100 Mbit/s)
Audio subsystem
5.1 - channel HDA codec (Realtek ALC662 audio codec)
Interfaces and buttons on the rear panel
1 HDMI port; 1 VGA port; 1 network LAN socket RJ-45; 3 audio jacks (Line In, Line Out, Mic In) 2 USB 2.0 ports
Interfaces and buttons on the system board
1 24-pin EATX power connector; 1 4-pin ATX 12V power connector; 1 4-pin CPU fan header; 1 front panel connector; 1 clear CMOS jumper
BIOS
64 Mbit ROM chip
Form factor
mATX (215 х 170)
Contents of delivery
Motherboard, software disc, user manual (English only)
Guarantee period
12 months
