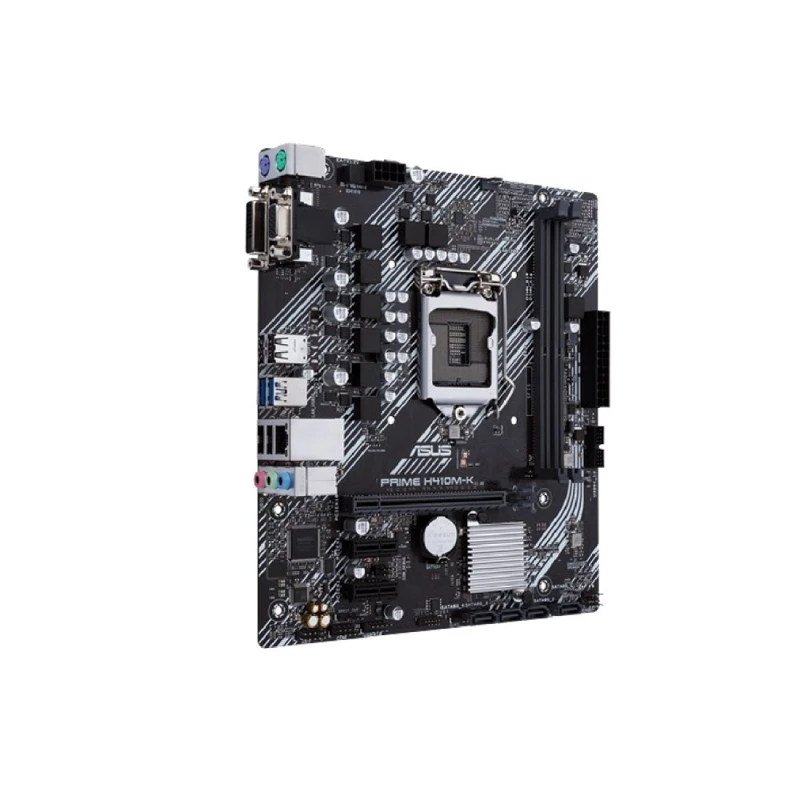

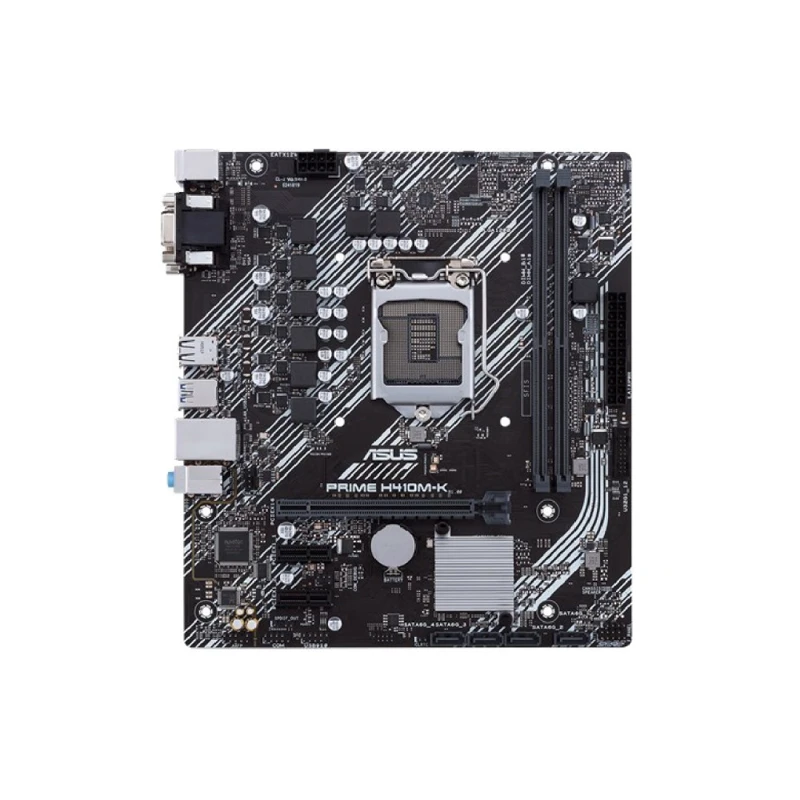

MOTHERBOARD ASUS H410M-K
MOTHERBOARD ASUS H410M-K
MOTHERBOARD ASUS H410M-K
zoom_out_map
MOTHERBOARD ASUS H410M-K
MOTHERBOARD ASUS H410M-K
MOTHERBOARD ASUS H410M-K

MOTHERBOARD ASUS H410M-K

ASUS
MBASH410MK
743 TMT
Tax included
Quantity

Supported Processors
10 Generation Intel® Core ™ / Pentium® Gold / Celeron® Processor Family with LGA1200 Form Factor
Chipset
Intel® H410
Memory subsystem
2 × DIMM DDR4 (non-ECC) unbuffered memory up to 64 GB; Dual-channel memory mode; Supports modules with a frequency of 4800 (OC) / 4600 (OC) / 4500 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3333 (OC) / 3200 (OC) / 3000 (OC) / 2933 (OC) / 2800 (OC) MHz; OptiMem II support
Interfaces for expansion cards
1 x PCIe 3.0 x16 (x16 mode) 2 x PCIe 3.0 x1
Drive Interfaces
4 x SATA 6 Gbit/s port(s)
Network interface
Intel® I225-V network controller (2.5 Gbit); ASUS LANGuard
Audio subsystem
8 channel HD Audio (ROG SupremeFX S1220A Audio Codec) Dual operational amplifiers; Impedance measurement for front and rear headphone outputs; Connector detection, multi-streaming, front connector re-insertion; High quality stereo output for 120dBSNR playback and 113dBSNR recording input; Supports playback up to 32 bit / 192 kHz

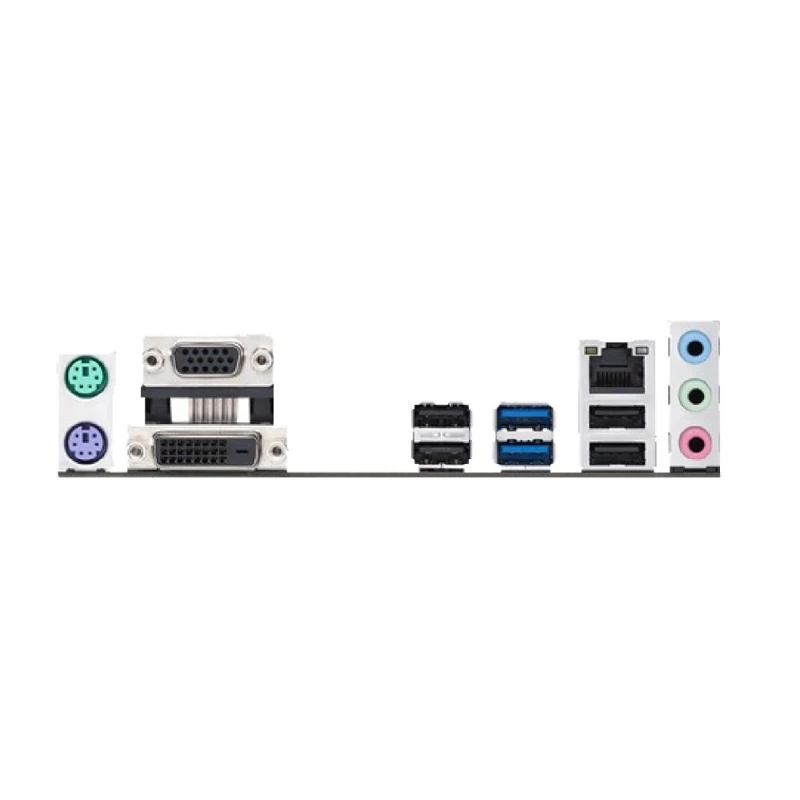

Interfaces and buttons on the rear panel
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0 3 x Audio jack(s)
Interfaces and buttons on the system board
1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Features
Asus exclusive software, Armoury crate, Ai suite 3, Turbov evo, Epu, Digi+ vrm, Fan xpert, Asus cpu-z, Ai charger, Daemon tools, Norton anti-virus software (free trial for 60 days), Winrar, Uefi bios
Form factor
MTX (226 × 203)
Contents of delivery
Motherboard, User Manual (English only), Bracket, 2 SATA 6Gb / s cables, DVD with software and drivers
Guarantee period
12 months
